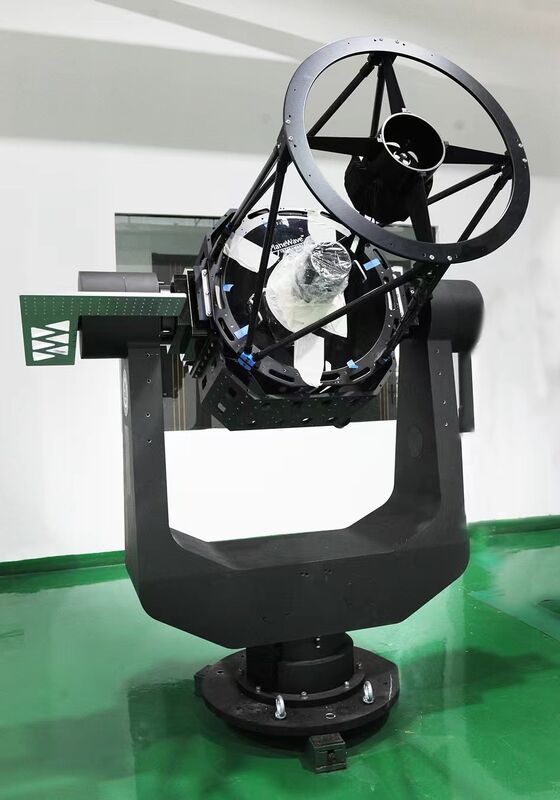

Satellite Tracking Turntable With Payload 150kg Satellite Antennas And Optical Systems Tracking Device
Product Description
The satellite tracking turntable has two degrees of freedom of movements in azimuth axis and pitch axis, while eliminating the effects of Earth's self-rotation. It is used together with payloads such as satellite antennas and optical systems to capture, point , and track stars, satellites, and other space targets.
Product Parameters
|
Specification |
||
|
1 |
Load Weight |
150Kg |
|
2 |
Angle Rotary Range |
azimuth:±280°； |
|
pitch:-5°~+95° |
||
|
3 |
Rotary Accuracy Of Dual-Axis |
±3″ |
|
4 |
Positioning Error Of Angular Position |
±3″ |
|
5 |
Positioning Repeatability Of Angular Position |
±2″ |
|
6 |
Resolution Of Angular Position |
0.0001° |
|
7 |
Rate Accuracy |
ω≤1°/s , 2×10-3 (1° average) |
|
1°/s≤ω<10°/s , 2×10-4 (10° average) |
||
|
ω≥10°/s , 2×10-5 (360° average) |
||
|
8 |
Maintain Precision Tracking Speed |
10°/s≥azimuth≥1″/s； |
|
5°/s≥pitch≥1″/s |
||
|
9 |
Maximum Angular Acceleration |
pitch:≥2°/s²； |
|
azimuth:≥6°/s² |
||
|
10 |
Code Disc Resolution |
1″ |
|
11 |
Zero Point |
With code disc zero point |
|
12 |
For Stellar Targets, Open-Loop Tracking Accuracy (RMS) |
Error within 10 seconds <0.5″, error within 60 minutes <1″; |
|
13 |
For Space Targets, Open-Loop Tracking Accuracy (RMS) |
Single axis<5″ |
