| ब्रांड नाम: | RUYA |
| एमओक्यू: | 1 सेट |
| कीमत: | विनिमय योग्य |
| प्रसव का समय: | 3 महीने |
| भुगतान की शर्तें: | टी/टी |

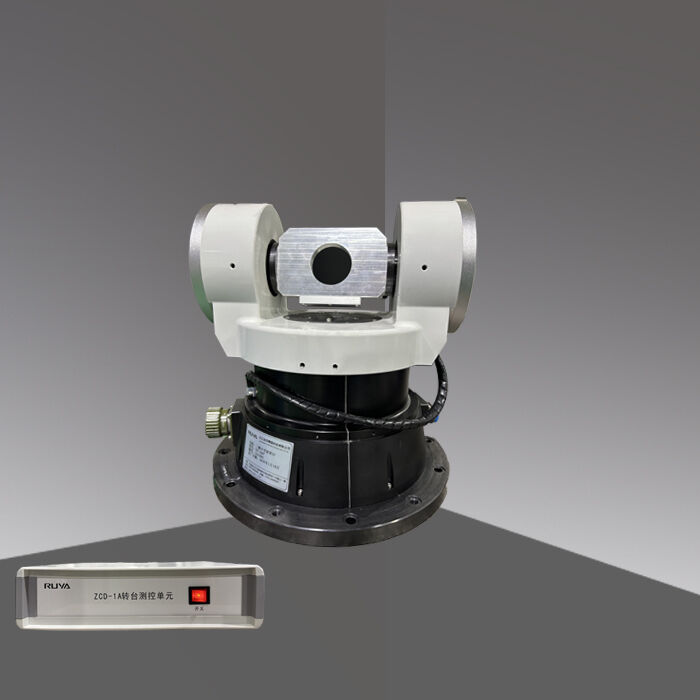

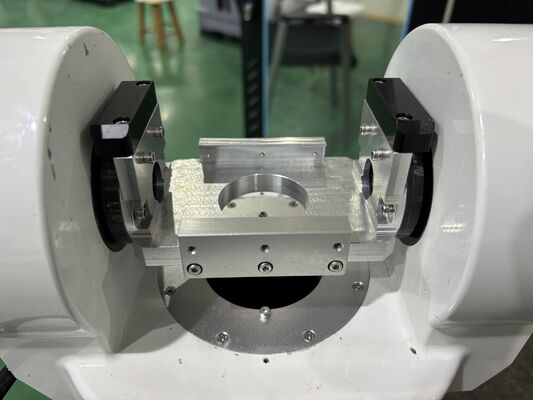

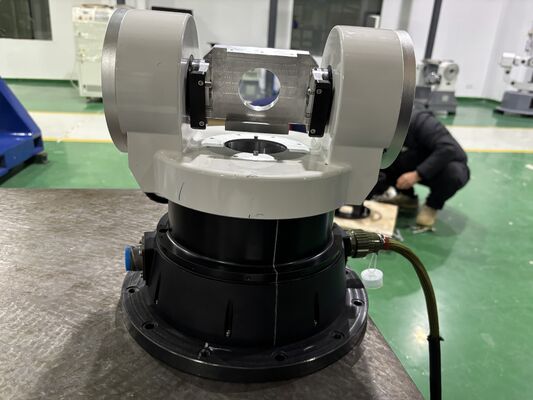

The 2D Hollow Rate Table is a high-end scientific research instrument that integrates high-precision angular positioning with an innovative structural design. Its defining feature is a through-hole situated at the center of the turntable body; while enabling simultaneous 2D rotation around both the pitch and azimuth axes, this design provides an unobstructed physical channel for optical paths, probes, or cables.
| Parameter | Azimuth Axis | Pitch Axis |
|---|---|---|
| Rotation Range | 360° | 360° |
| Hollow Diameter | 60 mm | >15 mm |
| Angular Accuracy | ±2″ | ±2″ |
| Repeatability | ±1″ | ±1″ |
| Resolution | 0.05″ | 0.05″ |
वीडियो
|
|
| ब्रांड नाम: | RUYA |
| एमओक्यू: | 1 सेट |
| कीमत: | विनिमय योग्य |
| पैकेजिंग विवरण: | लकड़ी का बक्सा |
| भुगतान की शर्तें: | टी/टी |
The 2D Hollow Rate Table is a high-end scientific research instrument that integrates high-precision angular positioning with an innovative structural design. Its defining feature is a through-hole situated at the center of the turntable body; while enabling simultaneous 2D rotation around both the pitch and azimuth axes, this design provides an unobstructed physical channel for optical paths, probes, or cables.
| Parameter | Azimuth Axis | Pitch Axis |
|---|---|---|
| Rotation Range | 360° | 360° |
| Hollow Diameter | 60 mm | >15 mm |
| Angular Accuracy | ±2″ | ±2″ |
| Repeatability | ±1″ | ±1″ |
| Resolution | 0.05″ | 0.05″ |
