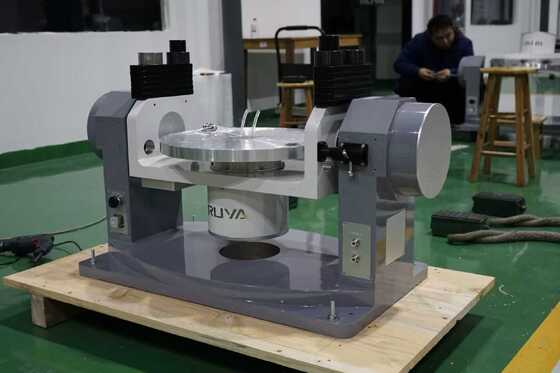

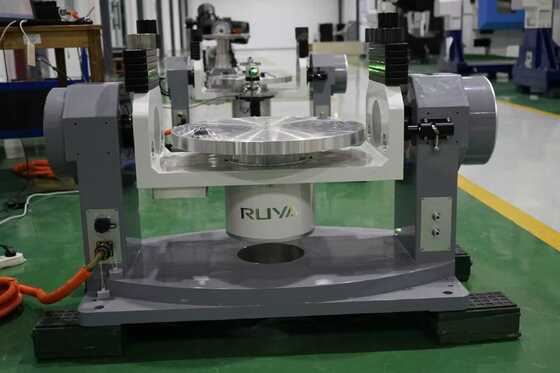

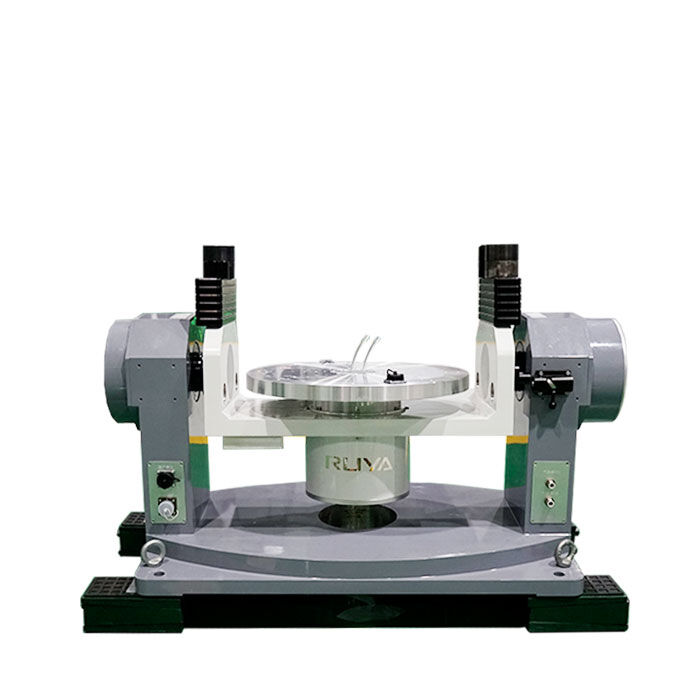

2DT450-A04 Dual-axis Electric Turntable Inertial Navigation Test Rate Position Table
Product Description
The dual-axis electric turntable has two degrees of motion freedom in azimuth axis (X) and pitch axis (Y). It is a tabletop two-dimensional precision testing equipment. It is mainly used for testing and calibration of the position, rate, swing and other functions of inertial devices and components.
Product Parameters
|
Specification |
||
|
1 |
Load Weight |
20Kg |
|
2 |
Table Diameter |
Ф450mm |
|
3 |
Table Flatness |
0.02mm |
|
4 |
Table Runout |
0.02mm |
|
5 |
Rotary Accuracy Of Dual-Axis |
±2″ |
|
6 |
Perpendicularity Of Dual-Axis |
±2″ |
|
7 |
Intersection Of Dual-Axis |
Ф0.5mm diameter ball |
|
8
|
Positioning Error Of Angular Position
|
outer frame:±2″； |
|
inner frame:±2″； |
||
|
9 |
Positioning Repeatability Of Angular Position |
±2″ |
|
10
|
Rate Range
|
inner frame:0.01°/s~1000°/s； |
|
outer frame:0.01°/s~500°/s； |
||
|
11
|
Rate Accuracy
|
ω≤1°/s , 2×10-3 (1° average) |
|
1°/s≤ω<10°/s , 2×10-4 (10° average) |
||
|
ω≥10°/s , 2×10-5 (360° average) |
||
|
12
|
Maximum Angular Acceleration
|
inner frame:≥500°/s² |
|
outer frame:≥200°/s² |
||
|
13 |
User Slip Ring |
Customizable |
|
14 |
Weight |
≤200Kg |
