2 अक्ष टर्नटेबल
Created with Pixso. 2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable

ब्रांड नाम: RUYA
मॉडल संख्या: 2dt600gz
एमओक्यू: 1 सेट
कीमत: विनिमय योग्य
प्रसव का समय: 3-4 महीने
भुगतान की शर्तें: टी/टी
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीनी
प्रमाणन:
ISO 9001
लोड वजन:
50 किलो
तालिका व्यास:
£ 600 मिमी
टेबल समतलता:
0.02 मिमी
टेबल रनआउट:
0.02 मिमी
स्थिति त्रुटि (बाहरी फ्रेम):
±3″
स्थिति त्रुटि (आंतरिक फ्रेम):
± 2 ″
अधिकतम कोणीय त्वरण (आंतरिक फ्रेम):
≥30 °/s−
अधिकतम कोणीय त्वरण) बाहरी फ्रेम):
≥30 °/s−
पैकेजिंग विवरण:
लकड़ी का डिब्बा
आपूर्ति की क्षमता:
≤3 सेट , 3 महीने
प्रमुखता देना:

Tracking 2 axis turntable

,

Test 2 axis turntable

,

Inertial Navigation dual axis turntable

उत्पाद का वर्णन

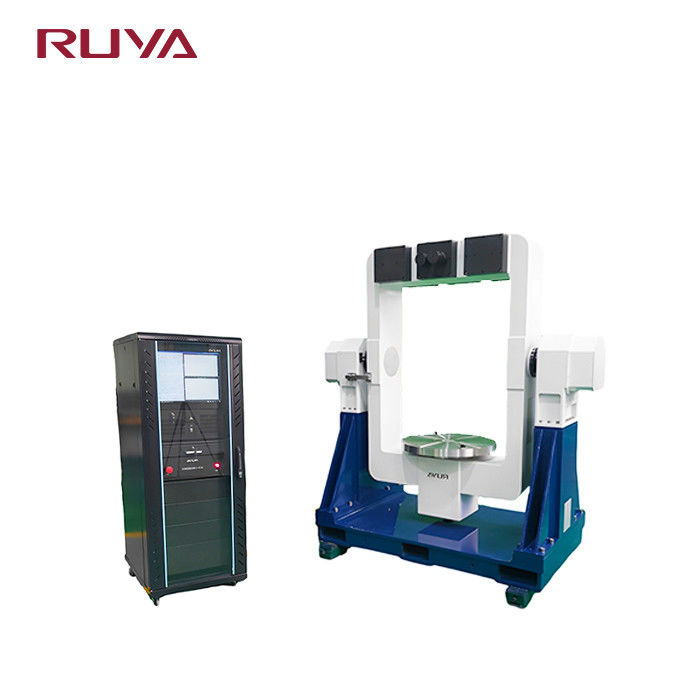

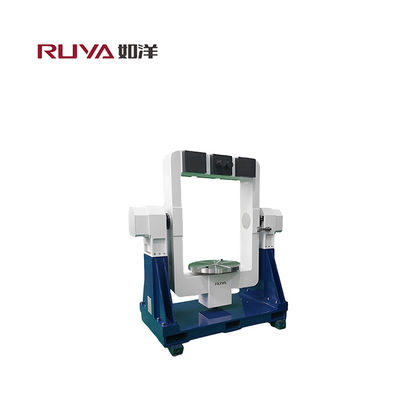

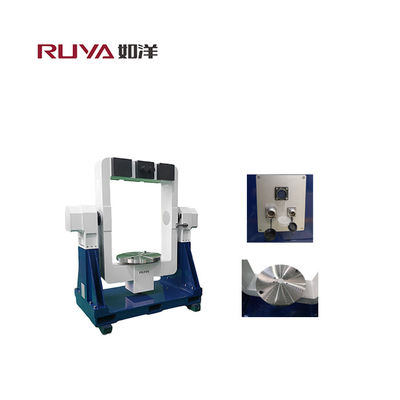

2DT600GZ Dual-axis Tracking Inertial Navigation Test Turntable



Product Description



The dual-axis tracking turntable has two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). It is a tabletop two-dimensional precision testing equipment. It is mainly used for testing the position, speed swing, tracking and other functions of precision components and components.



Product Parameters



Specification

1

Load Weight

50Kg

2

Table Diameter

Ф600mm

3

Table Flatness

0.02mm

4

Table Runout

0.02mm

5

Rotary Accuracy Of Dual-Axis

±3″

6

Perpendicularity Of Dual-Axis

±3

7

Intersection Of Dual-Axis

Ф0.5mm diameter ball

8





Positioning Error Of Angular Position





outer frame:±3″

inner frame:±2″

9

Positioning Repeatability Of Angular Position

±2″

10





Rate Range





inner frame:0.001°/s~15°/s

outer frame:0.001°/s~15°/s

11





Angle Rotary Range





outer frame: ±90°

inner frame: ±170°

12









Rate Accuracy









ω≤1°/s ,         2×10-3  (1° average)

1°/s≤ω<10°/s ,  2×10-4  (10° average)

ω≥10°/s ,        2×10-5  (360° average)

13





Maximum Angular Acceleration





inner frame:≥30°/s²

outer frame:≥30°/s²

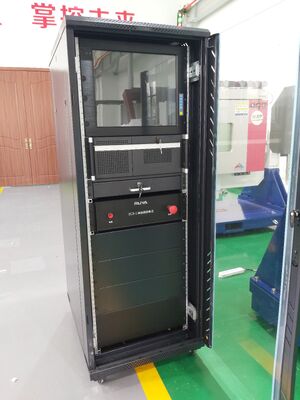

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable 0

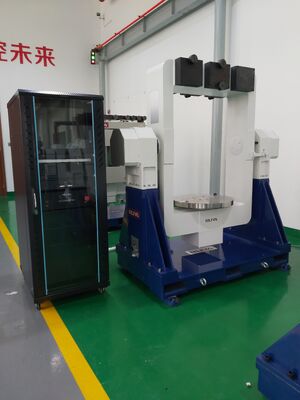

2DT600GZ Tracking Inertial Navigation Test 2 Axis Turntable 1
