1 अक्ष टर्नटेबल
Created with Pixso. DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable

DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable

ब्रांड नाम: RUYA
मॉडल संख्या: DT200-B
एमओक्यू: 1 सेट
कीमत: विनिमय योग्य
प्रसव का समय: 2-3 महीने
भुगतान की शर्तें: टी/टी
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीनी
प्रमाणन:
ISO 9001
Table Diameter:
Ф240mm
Table Flatness:
0.02mm
Table Runout:
0.02mm
रोटरी सटीकता:
±3″
Positioning Error:
±5″
पोजिशनिंग रिपीटेबिलिटी:
± 5 ″
Structure:
For both horizontal and vertical use
उपयोगकर्ता स्लिप रिंग:
अनुकूलन योग्य
पैकेजिंग विवरण:
लकड़ी का डिब्बा
आपूर्ति की क्षमता:
≤3 सेट , 3 महीने
प्रमुखता देना:

10kg inertial test turntable

,

Single Axis inertial test turntable

,

High Precision test turntables

उत्पाद का वर्णन

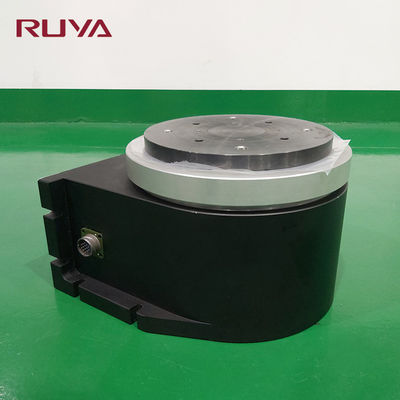

DT200-B High Precision Payload 10kg Single-axis Inertial Test Turntable



Product Description



DT200-B high-precision single-axis test turntable is mainly used to provide high-precision rotary reference during testing. It has the characteristics of high precision, stable structure, adaptability to different load test requirements, and automatic centering.



Product Parameters



Specification

1

Load Weight

10Kg

2

Table Diameter

Ф240mm

3

Table Flatness

0.02mm

4

Table Runout

0.02mm

5

Rotary Accuracy Of Axis

±3

6

Positioning Error Of Angular Position

±5″

7

Positioning Repeatability Of Angular Position

±5″

8

Rate Range

±0.0001°/s~±200°/s;

9

Rate Resolution

0.0001°/s

10









Rate Accuracy









ω≤1°/s ,         2×10-3  (1° average)

1°/s≤ω<10°/s ,  2×10-4  (10° average)

ω≥10°/s ,        2×10-5  (360° average)

11

Maximum Angular Acceleration

≥100°/s²

12

Structure

For both horizontal and vertical use

13

User Slip Ring

Customizable

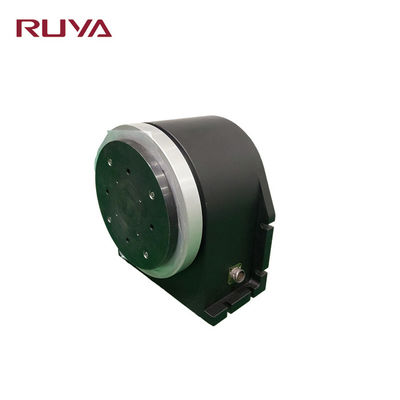

DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable 0

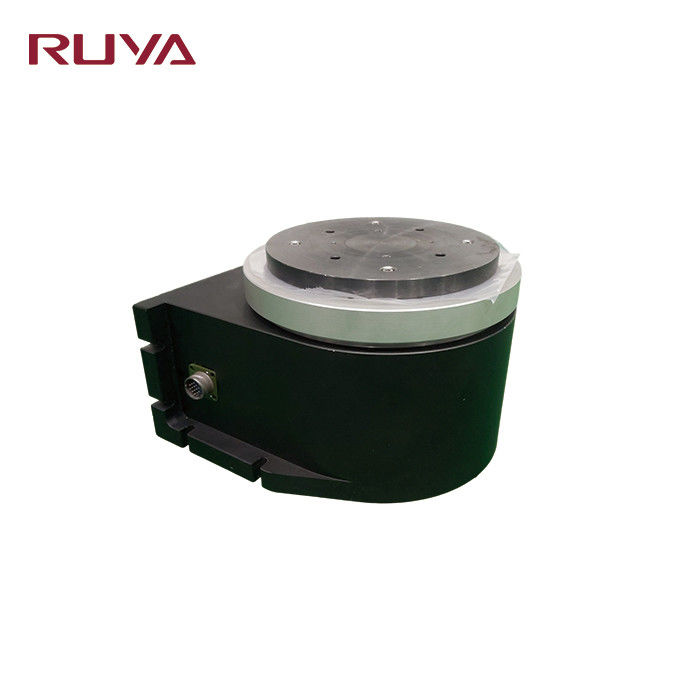

DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable 1
